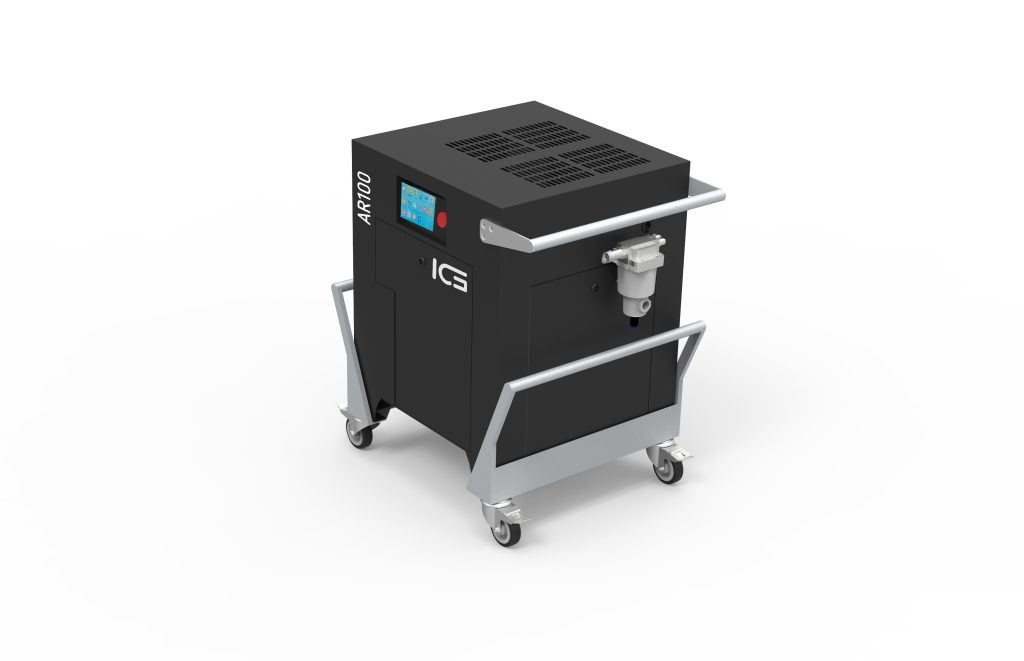

Air compressor for brushing equipment

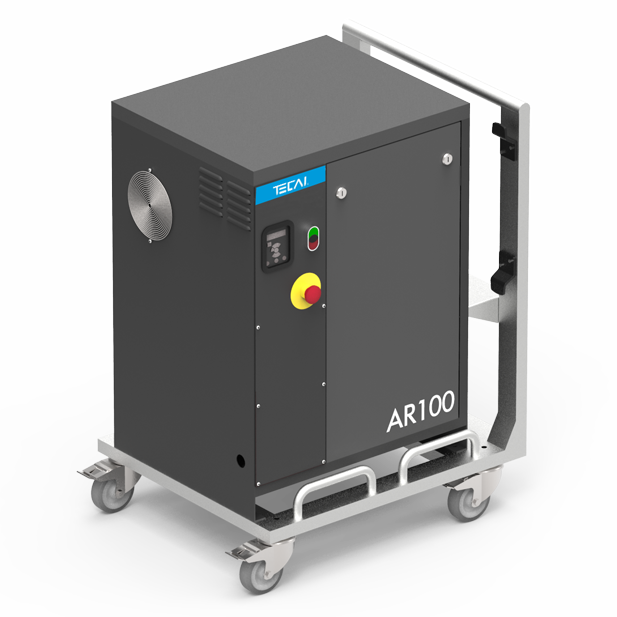

AR100 COMPRESSED AIR GENERATOR FOR VISIOAIR

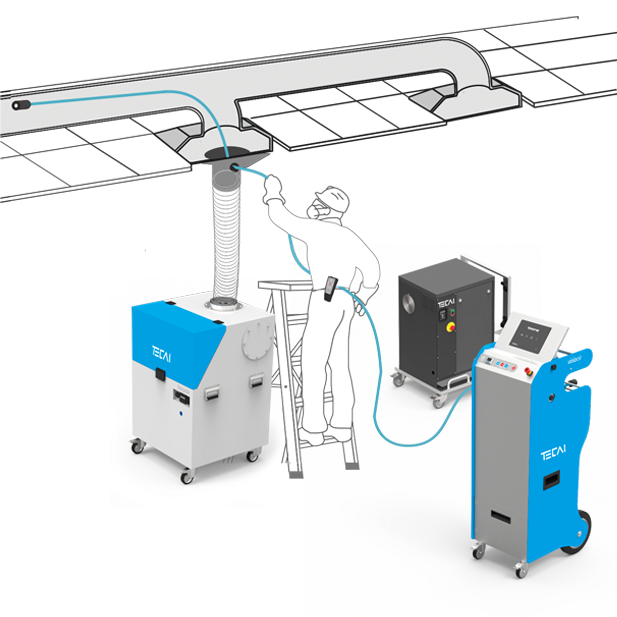

It is the perfect complement to your Visioair, a unit for duct cleaning by air injection, when a high flow of compressed air is required. It offers a flow rate of up to 1300 l/min, all in a compact size and weight.
In addition, its noise level is only 64 dB, which makes it ideal for working in environments where noise is an important factor or for working at night without causing discomfort.
TECHNICAL DATA SHEET
)
| Power supply | 380v 50/60 Hz // 230v 50/60 Hz |
| Phases | 3 |
| Operating pressure in bar (manom) | 13 |
| Air flow rate (l/min.) | 1300 |
| Min. working pressure in bar (manom). | 6.0 |
| Outlet connection (GH: Gas Female) | 1/2″. |
| Quantity of oil in compressor circuit lts | 5 |
| Motor power in Kw (continuous duty) | 7 |
| Noise level in dB(A) | 64 |
| Approximate weight in kg/lb | 126 / 278 |
| Dimensions: (L x W x H | 580 x 480 x 800 mm 22,8 x 18,9 x 31,4 inches |
| Cooling system | Air |
| Control panel | Membrane keypad |
| Structural material | Stainless steel |
It offers a flow rate of up to 1300 l/min, all in a compact size and weight with a sound level of only 64 dB
This compressor is suitable for your Visioair.
Commercial and industrial buildings, offices, government agencies, hospitals and schools, and public and private companies have the need to clean their ducts on a regular basis.
The National Air Duct Cleaners Association (NADCA ) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits.
Tecai is a member of NADCA, so when you buy our equipment, you should expect a high level of performance from it.
