Air compressor for brushing equipment

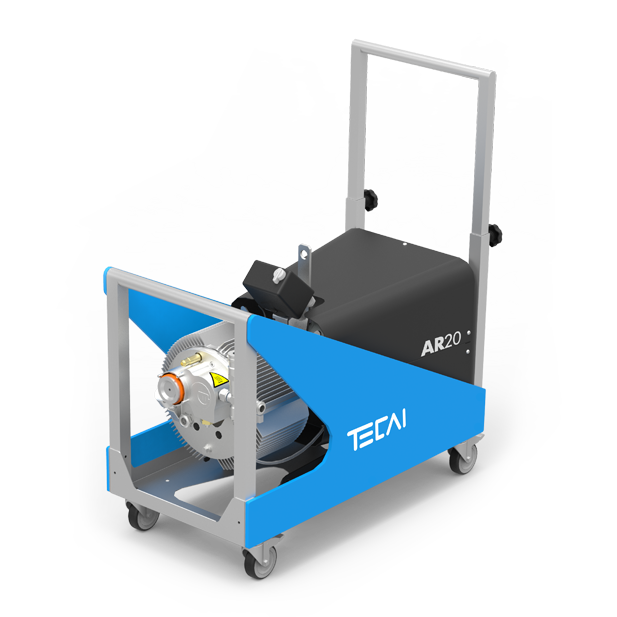

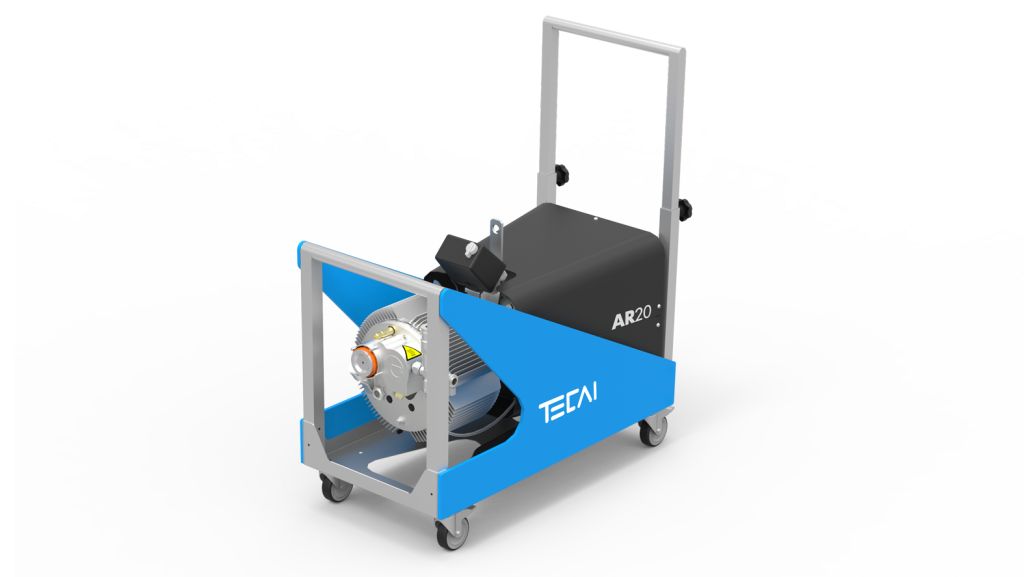

AR20 COMPRESSED AIR GENERATOR
Pneumatic planing equipment needs compressed air to operate. That is why we have developed air generators that are tailored to the specific needs of each task, offering exceptional performance, such as:
High air flow and pressure in single-phase connection, the ability to work continuously without risk of overheating, and ease of transport.
TECHNICAL DATA SHEET
Material outer structureStainless steel
| Power supply | 400V / 3 / 50Hz 110V / 60Hz 220V / 50Hz |
| Min. power cable cross-section | 2.5 mm2 // 3.88 x 10-3 in2 |
| Nominal pressure | 10 bar // 145.04 psi |
| Air delivery (5 bar // 72.52 psi) | 240 liters/min // 8.48 cfm |
| Receiving capacity | 360 liters/min // 12.71 cfm |
| Power | 2.2 kW |
| Sound level | 70 dB |
| Principle of operation | Pallets |
| Service limit temp. | 5 – 40ºC // 41 – 104ºF |
| Output temp. | > 75ºC // > 167ºF |
| Dimensions | 802 x 581,5 x 386 mm 31,5 x 22,9 x 15,2 inches |
| Extendable handleUp | to 900 mm // 35.4 inches |
| Weight | 50 kg // 110,23 lb |
| Residual oil in compressed air | < 3 ppm |
| Hydraulic circuit capacity | 1.5 liters // 0.4 gal. |
Maximum air flow and pressure in single-phase connection, continuous operation without heating, and great portability.

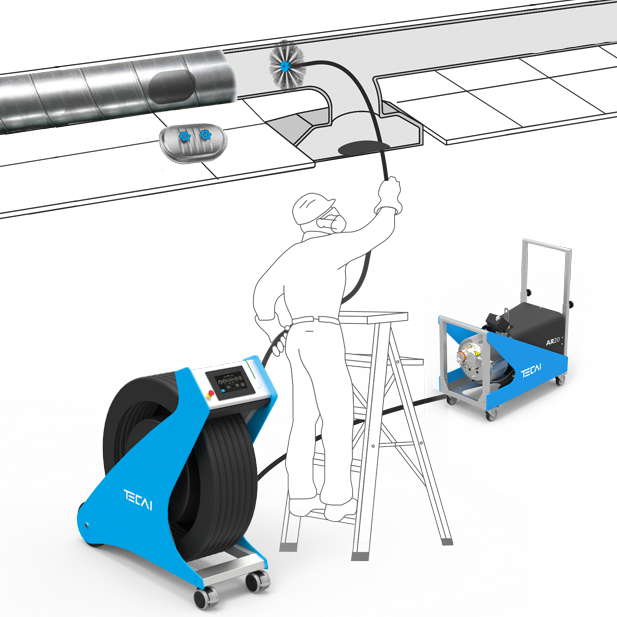

Commercial and industrial buildings, offices, government agencies, hospitals and schools, and public and private companies have the need to clean their ducts on a regular basis.
The National Air Duct Cleaners Association (NADCA ) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits.
Tecai is a member of NADCA, so when you buy our equipment, you should expect a high level of performance from it.
