Portable coil cleaning system by active foam injection and rinsing
CLEANING OF COILS BY ACTIVE FOAM AND RINSING
Portable equipment designed for efficient cleaning of the delicate coils of air conditioning systems, both in outdoor (condensing) and indoor (evaporating) units, such as splits and fan coils.

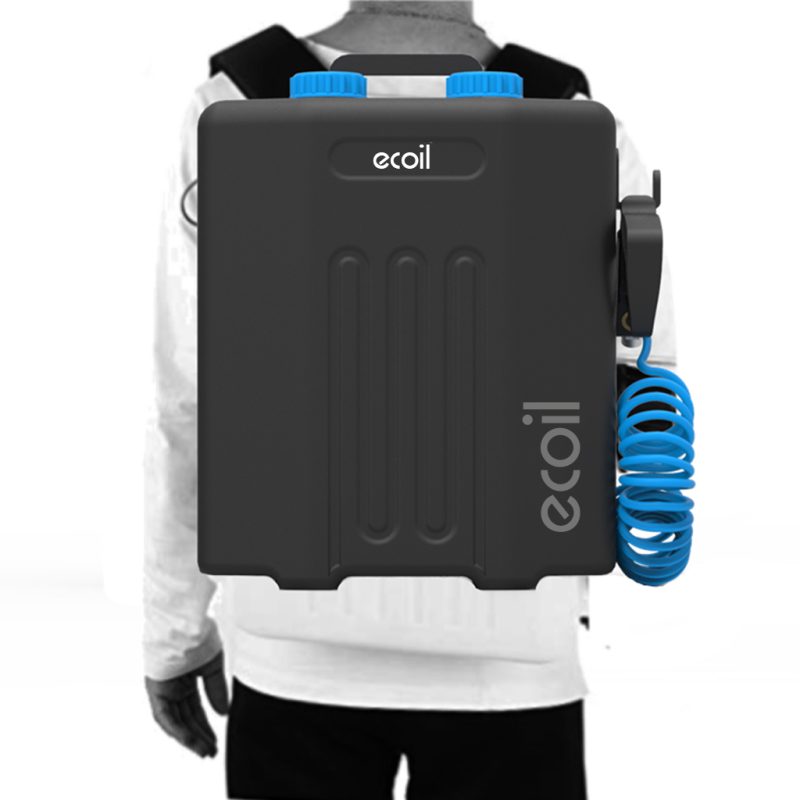

- Portability and power: Easily take it anywhere to clean, thanks to its compact and lightweight design.

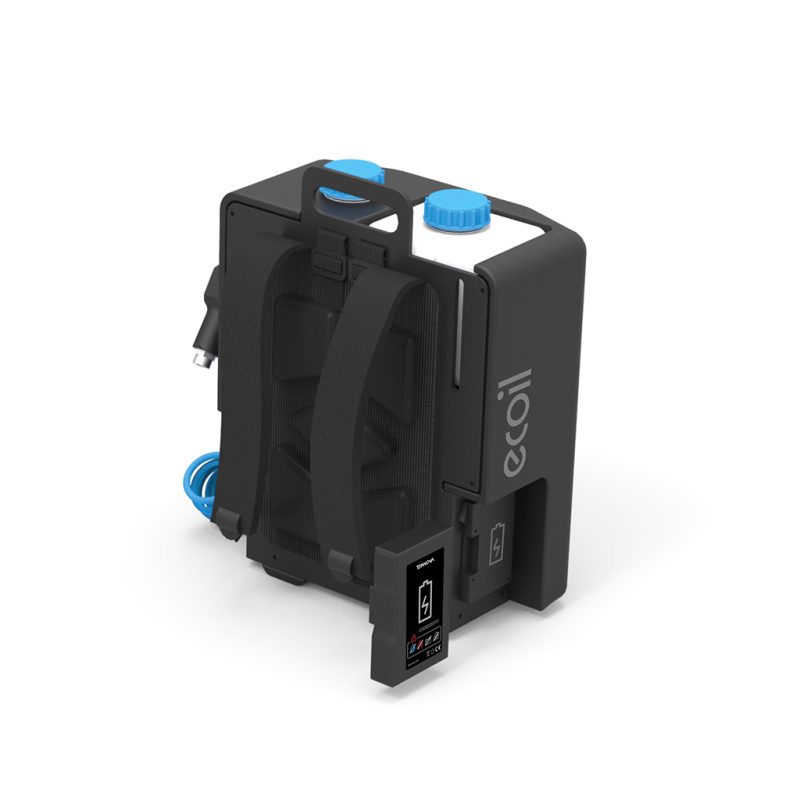

- Battery: Perform cleaning without interruptions thanks to its rechargeable battery.
- Two compartments: They feature separate tanks for water and chemicals, ensuring efficient cleaning.
- Chemical dispenser: Regulate the amount of product used according to the degree of soiling present.

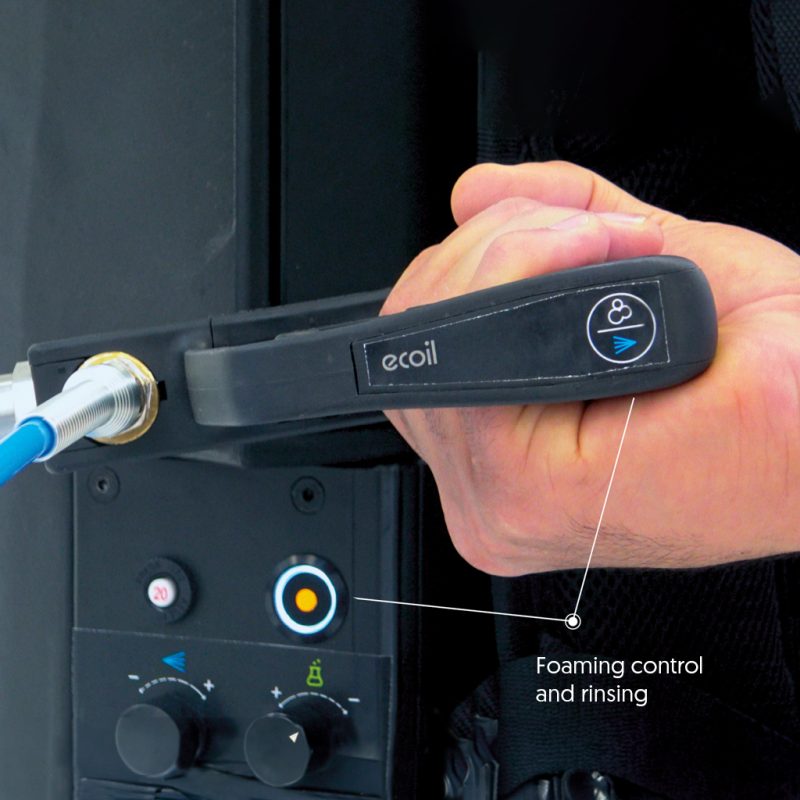

- Remote control: Control the foaming and rinsing process conveniently with the remote control integrated in the handle.
- Optional spray wand: Boost cleaning with an additional wand that includes 45° and 90° nozzles, allowing deep cleaning of coils from the inside out.
TECHNICAL DATA SHEET
| Power supply | Li-ion battery 6600mAh (97.68Wh) |
| Nominal battery voltage | 14.4V |
| Battery charging time | 90 min |
| Maximum outlet pressure | 6.9 bar |
| Maximum output flow rate | 6 l/min |
| Water tank capacity | 10 l |
| Chemical tank capacity | 2.5 l |
| Dimensions (H x W x L) | 419 x 200 x 492 mm 16.50 x 7.87 x 19.37 inches |
| Weight empty (with battery) | 8.5 kg // 18.74 lbs. |
| Hose length | 2 m // 6,56 ft |
| Noise level | 60 dB |
| Materials | UV8 polyethylene, HDPE and cloth |
Cleaning of wall and roof air conditioning systems, condensing unit coils, air conditioning equipment in cooling towers, and evaporators and condensers of refrigeration systems.
Commercial and industrial buildings, offices, government agencies, hospitals and schools, and public and private companies have the need to clean their ducts on a regular basis.
The National Air Duct Cleaners Association (NADCA ) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits.
Tecai is a member of NADCA, so when you buy our equipment, you should expect a high level of performance from it.





APPLICATIONS

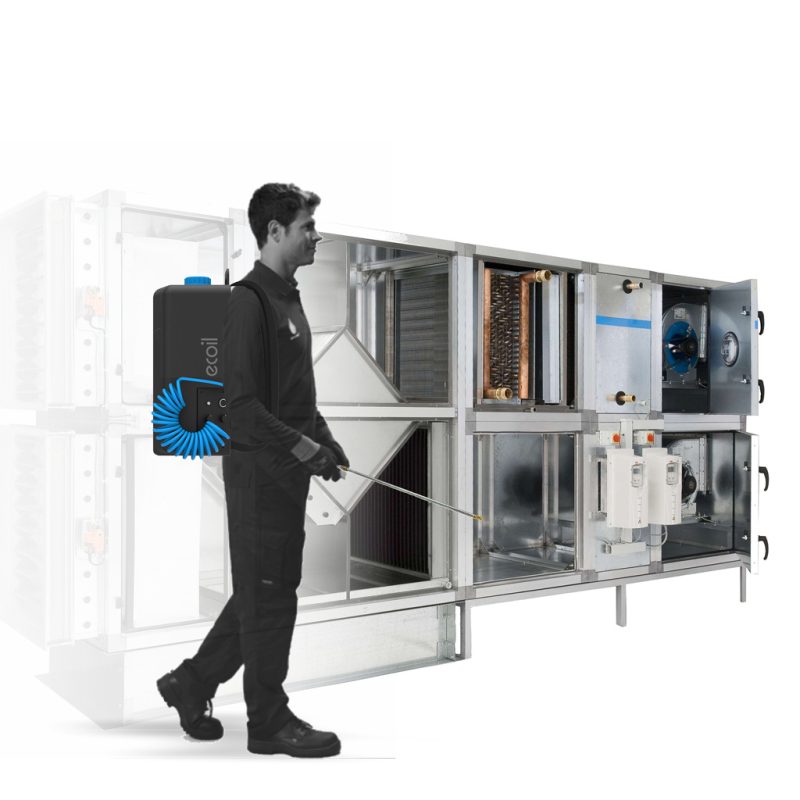

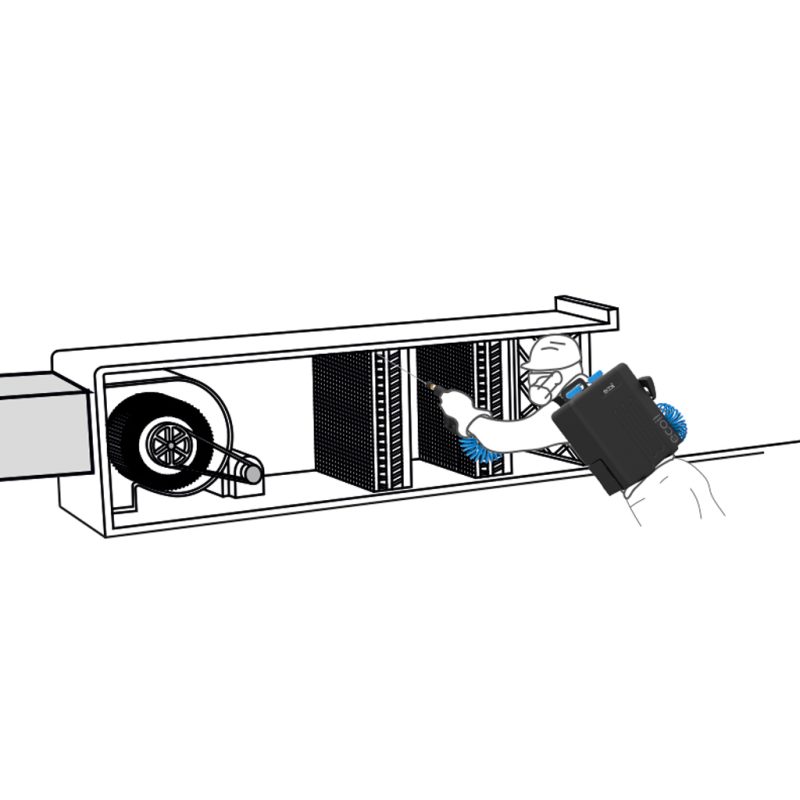

Cleaning of evaporators, condensers and AHUs

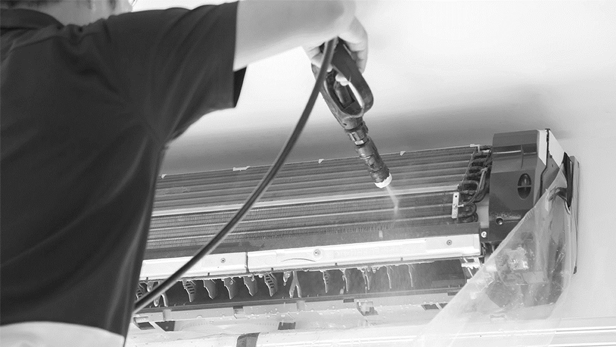

Cleans wall or ceiling splits in the most professional way.
OPTIONAL ACCESSORIES

KIT ACCESORIES
3 attachable 30 cm rods,
2 nozzles of 45º and 90º.
WALL SPLIT COVER
Protection and collection
of liquids for cleaning
(split wall)


SPLIT CASSETTE COVER
Protection and collection
liquids for cleaning
(split cassette)
CONSUMABLES

COILFOAM
Highly effective alkaline degreaser for untreated air conditioning coils. Bottle 10 kg

COILNET
Highly effective alkaline degreaser for air conditioning coils.
Bottle 10 kg
