Air vacuum and filtration system for air ducts
VACCUM AND FILTRATION IN AIR DUCTS

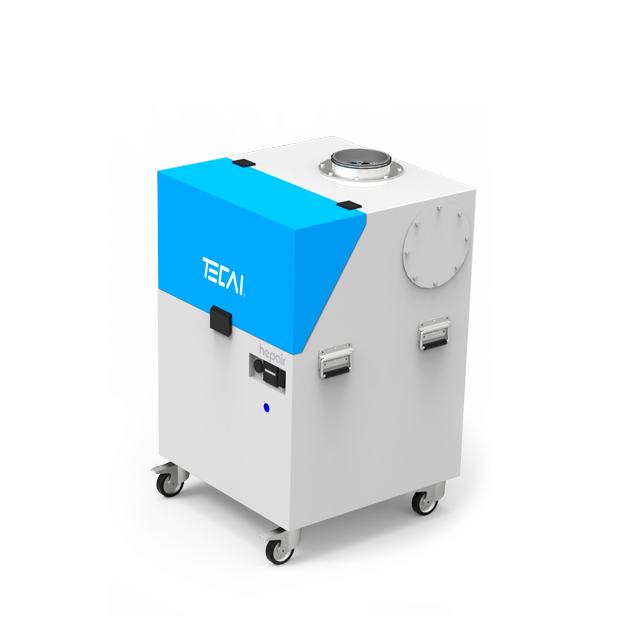

The Hepair 2000 system for the vacuum and filtration of air conditioning ducts is the ideal choice. This powerful equipment creates a negative pressure in the ducts, which allows trapping all the particles present inside the ducts. Thanks to its three-stage filtering process, it effectively retains these particles, separating them according to their size by means of the different modules.
Reach anywhere you need to go. Its 3-meter hose with telescopic supports allows you to reach all ducts, regardless of their height. Total filtration. With its three stages of filtration and the absolute HEPA H13 filter, there will be no particle that escapes.
- Thanks to its compact and sturdy design equipped with wheels and side handles, it is easy to transport and handle within the facility.
- Greater control by means of the hours of use counter.
- It has an acoustic filter saturation indicator that informs about the state of the equipment and the need to change it, preventing you from wasting time.

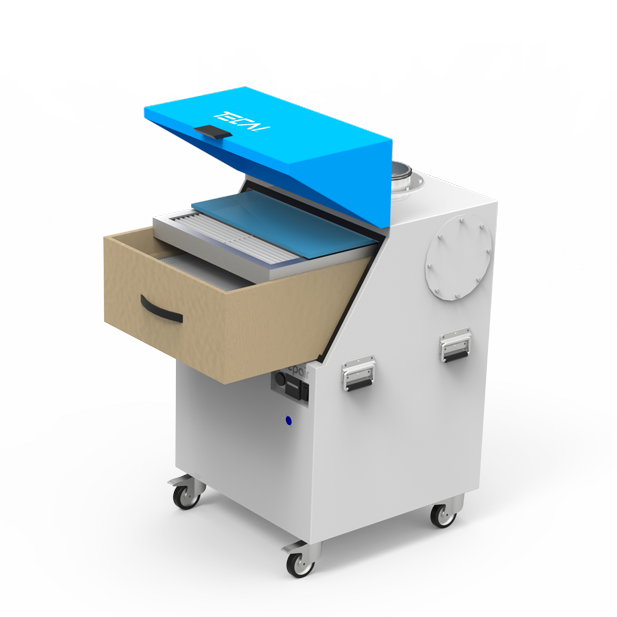

- Triple filtration for air ducts. Includes a set of three filters for optimum filtration (Prefilter G4 + Bag filter M5 + HEPA 13 absolute filter).
TECHNICAL DATA SHEET
| Power supply | 220V / 50Hz // 110V / 60Hz |
| Maximum flow rate | 2000 m3/h // 1177.2 cfm |
| Maximum pressure | 1600 m3/h at 1800 Pa 941.7 cfm at 0.26 psi |
| Filtration level 1 | Prefilter G4 |
| Filtration level 2 | M5 bag filter |
| Filtration level 3 | HEPA H13 absolute filter |
| Degree of separation | >99% |
| Power | 880 W |
| Current consumption | 4 A | 8A |
| Noise level | 72 dB |
| Dimensions | 611 x 590 x 943 mm 24 x 23 x 37 inches |
| Weight | 80 kg // 176.37 lb |
Suction and filtration system for air ducts.
Commercial and industrial buildings, offices, government agencies, hospitals and schools, and public and private companies have the need to clean their ducts on a regular basis.
The National Air Duct Cleaners Association (NADCA ) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits.
Tecai is a member of NADCA, so when you buy our equipment, you should expect a high level of performance from it.


CONSUMABLES

SUCTION HOSE
Ø160 mm, 3 m length.

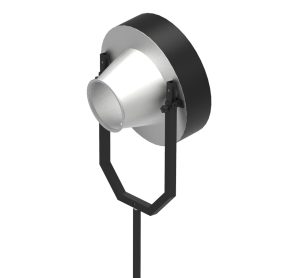

Y” ADAPTER Ø300
To place the sleeve in square ducts
and circular ducts.


PREFILTERS
G4.
BAG FILTER
M5.


HEPA 13.
