Air vaccum and filtration system for air ducts
VACUUM AND FILTRATION IN AIR DUCTS

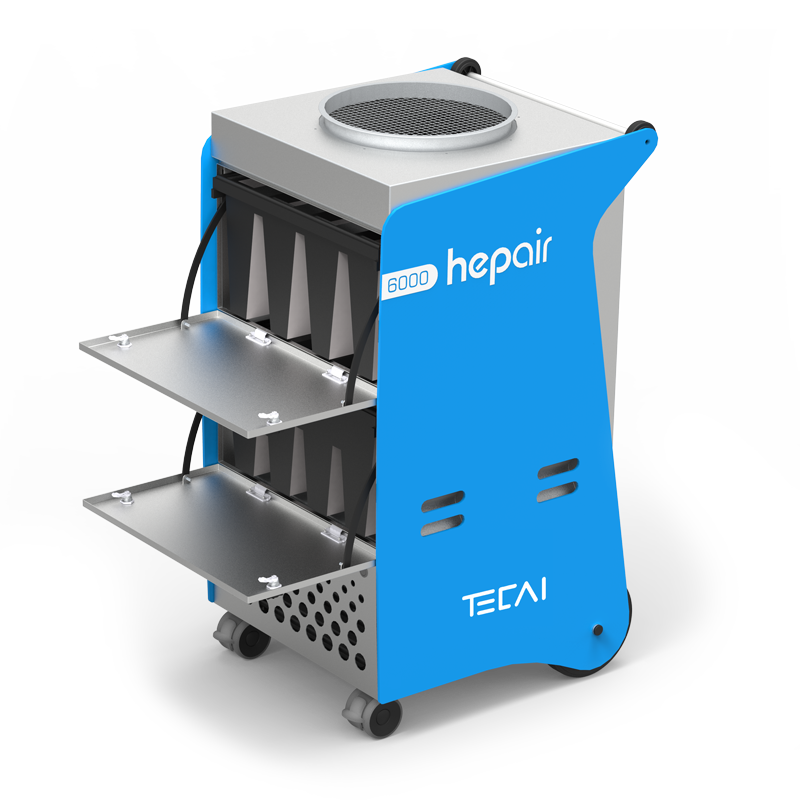

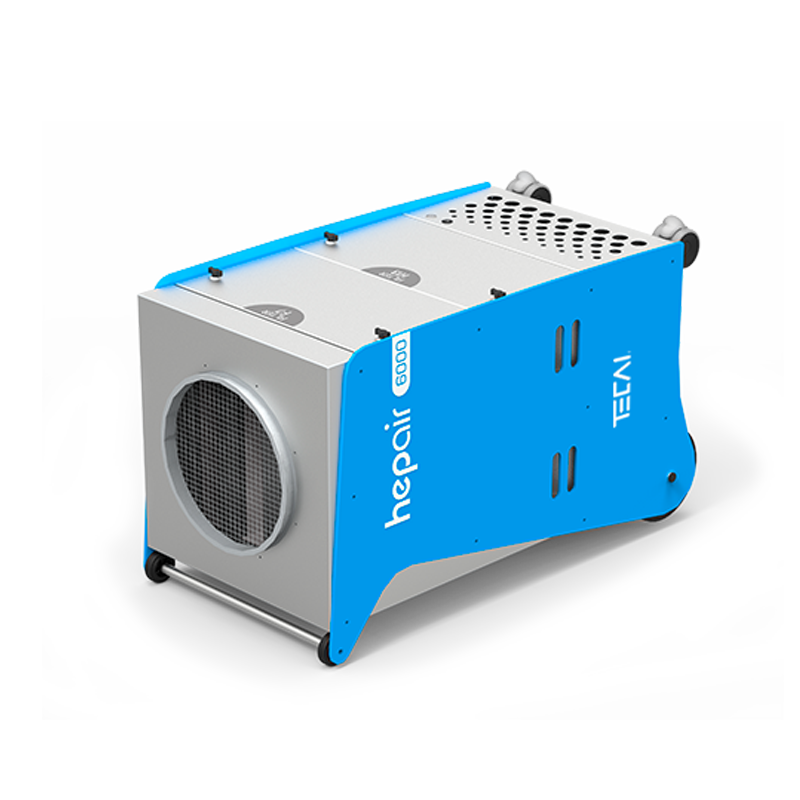

Hepair 6000 is the ideal solution for negative vacuum in air duct cleaning and air conditioning systems. The negative pressure created inside the ducts attracts and captures all the particles inside the ducts. Through several filtering stages, these particles are retained and separated according to their size in different modules of the system.
This negative pressure vacuum cleaner provides a suction capacity of 6200 m³/h maximum flow rate, making it capable of tackling even the most demanding tasks.
- Automatic suction adjustment: The vacuum cleaner has an integrated variable speed drive that adjusts the air suction according to the power consumption of the electrical outlet, optimizing the power of the equipment.
- Single-Phase Vacuum Cleaner: The Hepair 6000 is a single-phase vacuum cleaner that can be plugged into any electrical outlet. It offers speed, versatility and power in one device.
- Compact and versatile design: Its compact design ensures total watertightness. It can be used and transported both horizontally and vertically, and is compatible with ducts from 300 mm to 1200 mm.
- Clogged filter indicator: Includes an acoustic signal that warns when the filters are saturated and need to be changed.
- Maintenance-free turbine: The equipment is equipped with a turbine that does not require maintenance, since it does not use brushes, unlike conventional motors.
TECHNICAL DATA SHEET
| Power supply | 220V / 50Hz // 110V / 60Hz |
| Maximum flow rate | 6200 m3/h / 3650 CFM |
| Flow rate with F7 filter | 5350 m3/h / 3150 CFM |
| Flow rate with Filter H13 | 4800 m3/h / 2825 CFM |
| Maximum pressure | 1300 Pa / 0,2 psi |
| Filtration level 1 | F7 |
| Filtration level 2 | H13 |
| Degree of separation | >99% |
| Power | 1250 W |
| Current consumption | 5.6 A | 11.2 A |
| Noise level | 80 dB |
| Dimensions | 670x750x1300mm / 26,4×29,5×51,2 inches |
| Weight without filters | 80 Kg |
| Weight with filters | 100 Kg |
Suction and filtration system for air ducts.
Commercial and industrial buildings, offices, government agencies, hospitals and schools, and public and private companies have the need to clean their ducts on a regular basis.
The National Air Duct Cleaners Association (NADCA ) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits.
Tecai is a member of NADCA, so when you buy our equipment, you should expect a high level of performance from it.



CONSUMABLES

SUCTION HOSE
Ø300 mm – 5 m length.
SUCTION HOSE
Ø400 mm – 5 m length.


Y” ADAPTER Ø300
To place the sleeve in square ducts
and circular ducts.
Y-ADAPTER Ø400
To place the sleeve in square ducts
and circular ducts.


ABSOLUTE FILTER
HEPA 13.
BAG FILTER
F7.


SLEEVE DECANTER
T” shape that ends
in a 120 liter tank.
