Air duct cleaning robot with multiple functions
CLEANING, INSPECTION, DISINFECTION AND COATING IN A SINGLE DUCT CLEANING ROBOT
This multifunctional duct cleaning robot offers you the possibility to perform various tasks by connecting specific modules for cleaning, inspection, disinfection, coating and dry ice inside the HVAC ducts.
This duct cleaning robot is equipped with advanced technology, including FullHD viewing cameras, an automatic module lifting system, an HMI touch screen control unit and an HD recording system.

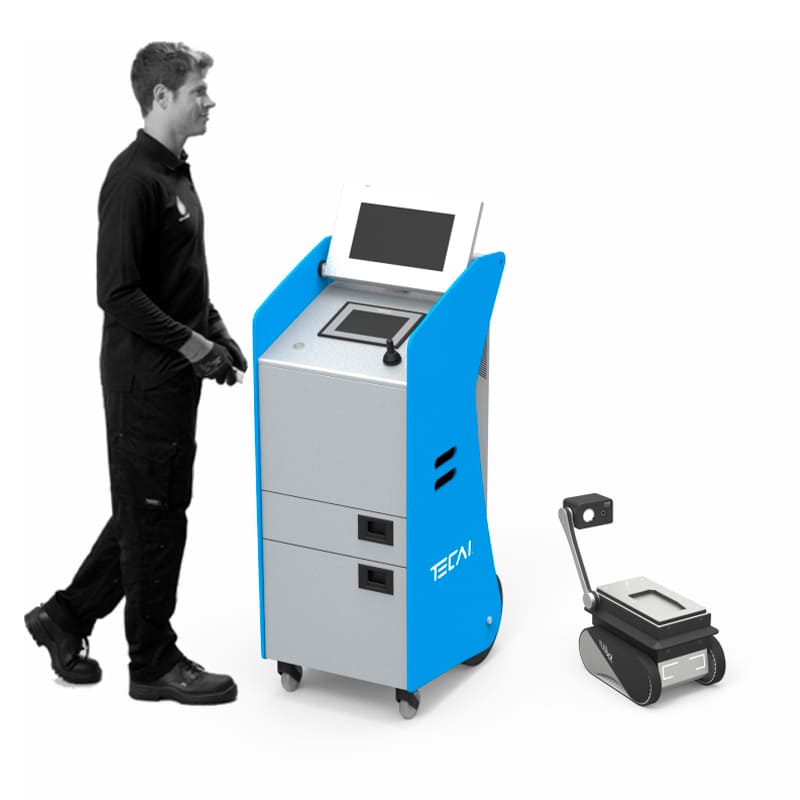

CONTROL PANEL DATA SHEET
7″ 800x480px – touch screenI
| Power | 230V / 50 – 60Hz 110V / 50 – 60Hz 50W max. |
| Power supply | Electric |
| Control panel | HMI display and joystick |
| HM | control panel |
| Display System | 11.6″ / 256GB Full HD 1080p 60Hz display |
| Dimensiones | 561 x 440 x 1108 mm 22,1 x 17,32 x 43,6 inches |
| Weight | 54 kg // 119 lb (without cables) |
| Tractor connection cable length | 20 m // 49 ft |
| Structural material | Painted steel and HDPE |
TECHNICAL DATA SHEET ROBOT MAX
| Power | 50 W max |
| Control system | Electric |
| Traction | By high grip belt |
| Lighting | 4000K 360º high intensity LED |
| Cameras | Full HD 1080P color |
| Tractor dimensions | 296 x 204.5 x 251.5 mm expandable to 433mm 11.65 x 8 x 9.9 inches |
| Tractor dimensions | 612.9 x 406.4 x 256.4 mm 24.13 x 16 x 10.1 inches |
| Tractor weight | 11 kg // 24.2 lb |
| Structural material | Stainless steel and polyamide (PA12) |
TECHNICAL DATA SHEET MICRO ROBOT
| Power | 50 W max |
| Control system | Electric |
| Traction | By high grip belt |
| Lighting | 4000K 360º high intensity LED |
| Cameras | Full HD 1080P color |
| Tractor dimensions | 284.5 x 198 x 112 mm 11.2 x 7.8 x 4.41 inches |
| Tractor dimensions | 612.9 x 406.4 x 256.4 mm 24.13 x 16 x 10.1 inches |
| Tractor weight | 5.5 kg // 12.13 lb |
| Structural material | Stainless steel |
With the MAX robotic platform, ducts from 400 to 1,000 mm can be cleaned, disinfected and coated. Thanks to the automated lifting system of the application modules, the height adjustment will be adapted to the duct size with the robot moving from the control unit.
Commercial and industrial buildings, offices, government agencies, hospitals and schools, and public and private companies have the need to clean their ducts on a regular basis.
The National Air Duct Cleaners Association (NADCA ) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits.
Tecai is a member of NADCA, so when you buy our equipment, you should expect a high level of performance from it.
CHARACTERISTICS
MODULAR DESIGN
Multibot is a robotic platform that can be coupled with various cleaning, inspection, disinfection and coating modules to perform all necessary applications inside HVAC ducts, such as cleaning with different methods, disinfection and coating.
VERSATILITY

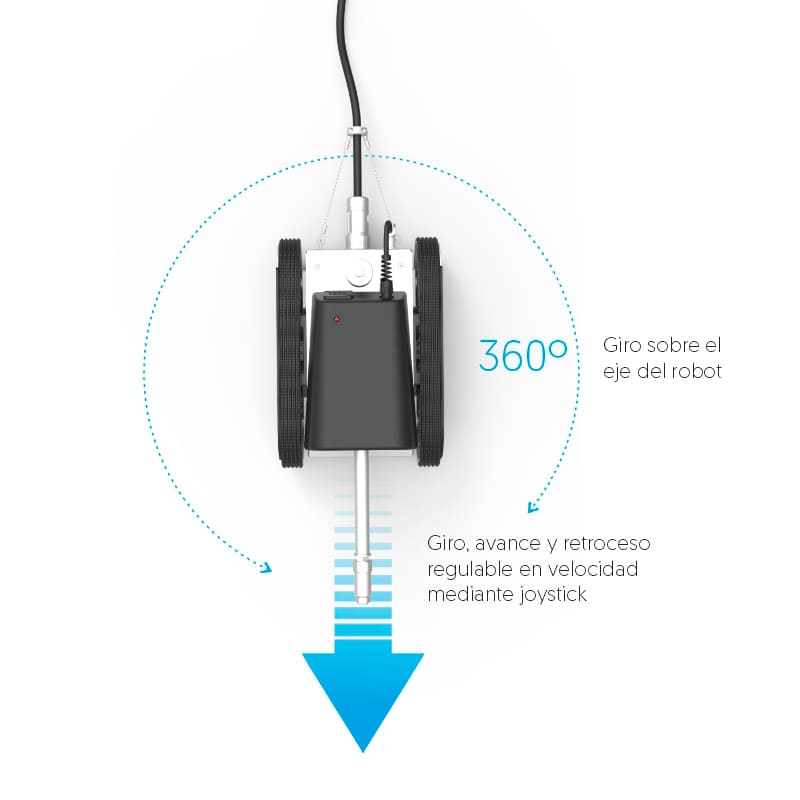

The Multibot’s robust traction crawler allows it to move over any surface and climb slopes of up to 30° inclination. Both the robot and the application modules are designed to clean ducts of any type, whether circular or square, and of any size.
AUTOMATIC LIFTING
Thanks to the automated platform lifting system, it is possible to clean large diameter ducts up to 1000 mm. The height adjustment will be automatically adjusted as the robot moves, all controlled from the control unit.
ROBUST AND RELIABLE
Manufactured with high resistance materials, such as stainless steel in the structure and high density polyamide in the covers. The core of the Multibot is its powerful state-of-the-art motors, which guarantee a long service life and high reliability.

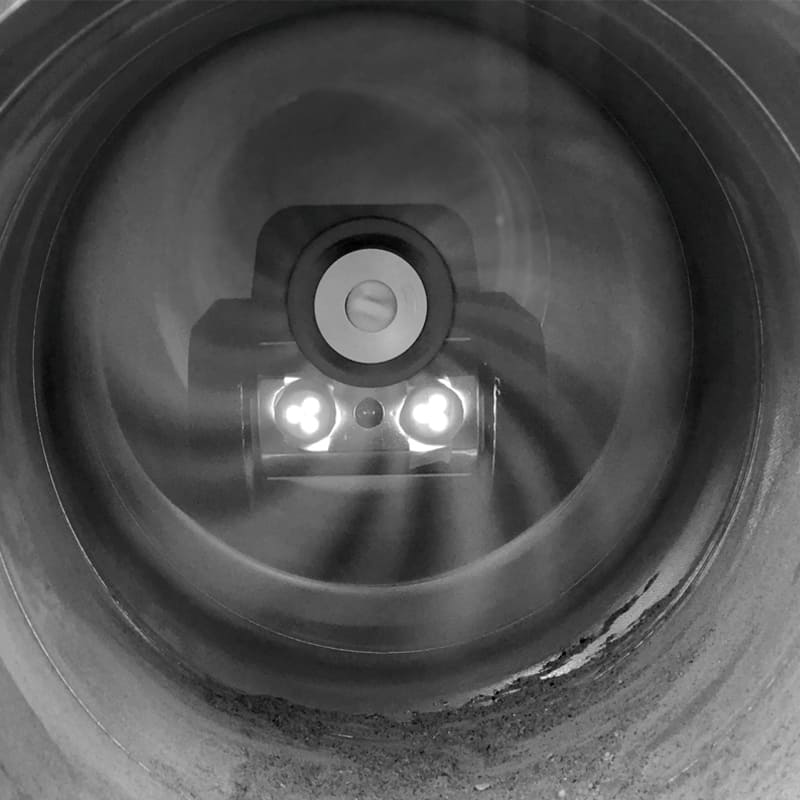

ROBOT UNIT
air duct cleaning robots
APP MODULES

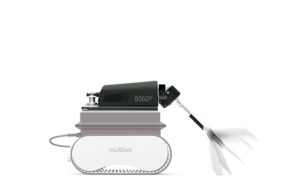

B360º
APP 360º ADAPTATIVE BRUSH
App for duct cleaning using a rotating brush with perimeter movement. It moves along the entire length of the duct, adapting to its shape and dimensions. Very effective in square ducts.

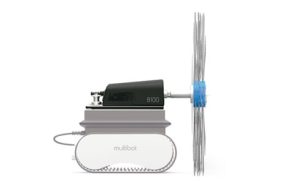

B100
APP CLEANING WITH BRUSH
Duct cleaning application that uses a rotating brush with speed control and reverse rotation. This module is perfect for circular duct cleaning.

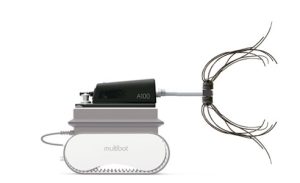

A100
APP AIR INJECTION
Duct cleaning by injecting air through silicone tubes, which causes a whip-like movement in different directions, dragging the dust to the front. Requires the use of an air compressor.

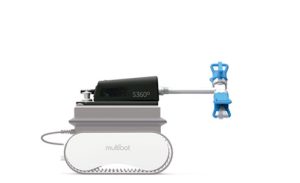

S360º

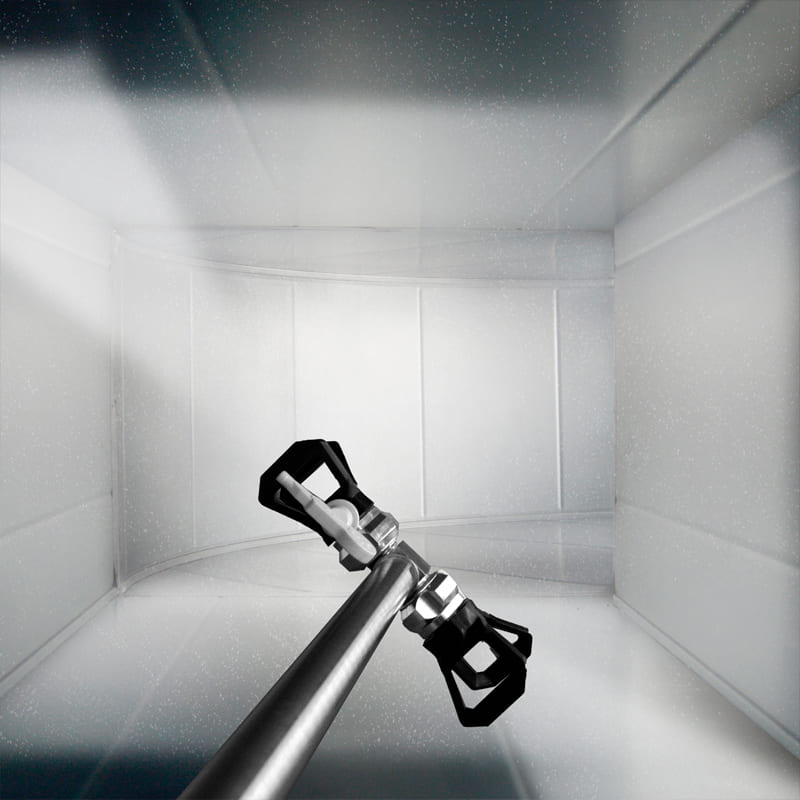

APP 360º COATING
App for coating the inside of ducts using a lance with a double injection nozzle, which performs a 360º perimeter movement along the duct. This system applies the coating uniformly and quickly.

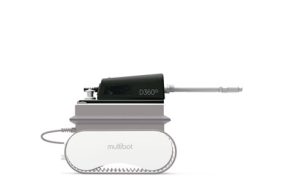

D360º
DISINFECTION APP
Application to disinfect the inside of the ducts using an injection pump and a 360º nebulization nozzle. This system distributes the disinfectant evenly and quickly.

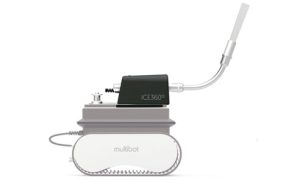

ICE360º.
APP DRY ICE 360º
App for the projection of dry ice from inside the ducts by means of an injection lance. It performs a 360º perimeter movement through the duct. This system applies dry ice (Co2) on greasy residues, without using water or chemicals.

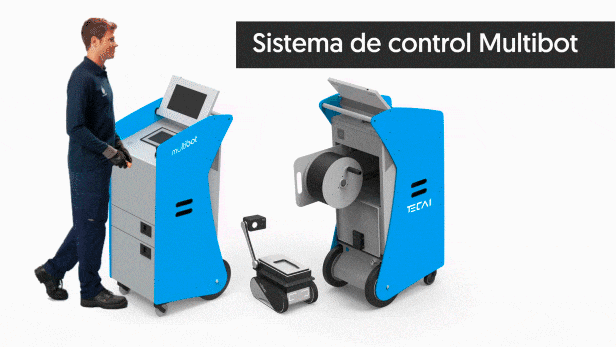

CONTROL UNIT
application modules and the Multibote
