Pneumatic air duct cleaning equipment
PNEUMATIC
For ducts up to
1000 mm
Hose length
25m
MAXIMUM POWER FOR DUCT CLEANING

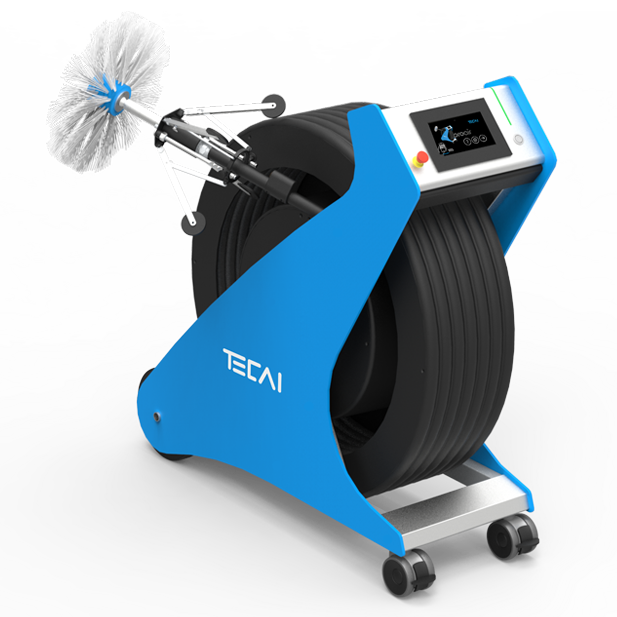

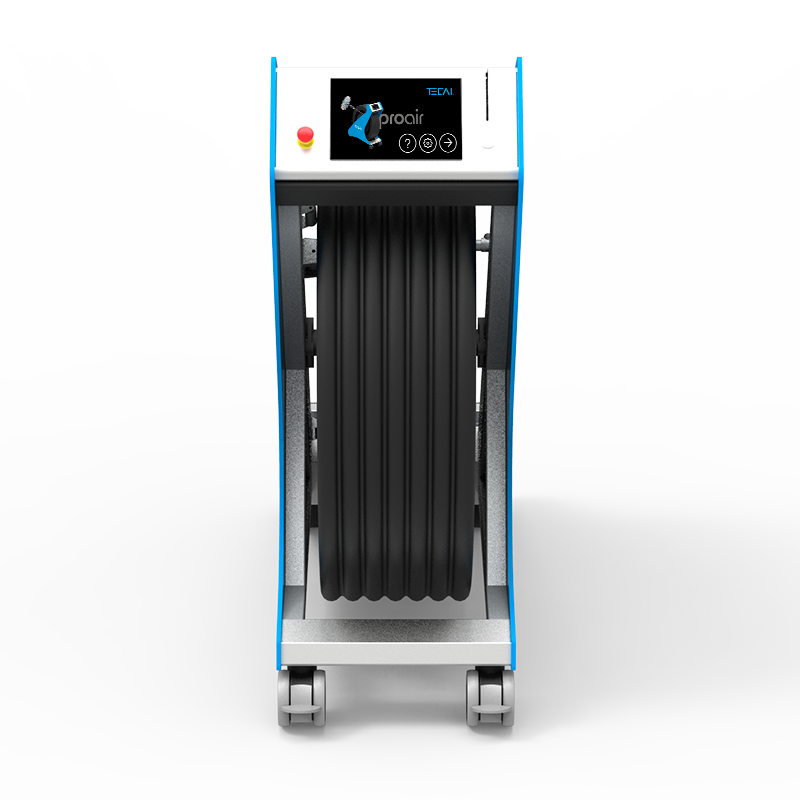

This system uses compressed air to activate a motor located at the end of a 25 meter long flexible hose. Extremely reliable and resistant tool. It is the ideal solution for cleaning large diameter air ducts or in those cases where it is necessary to clean long distances of ductwork, thus offering high performance and efficiency in large jobs.
- PROAIR stands out in the market for its ability to visualize and record the duct while the cleaning process is being carried out.
- The optional remote control allows a single operator to perform the entire cleaning job, controlling both the hose and equipment functions from a single point.
- In addition, it includes the option to automate the direction of brush rotation, which significantly reduces the time required to complete cleaning.
TECHNICAL DATA SHEET
| Motor power supply (Maximum power): | Compressed air 220 l/min – 6.3 bar // 7.77 cfm – 6.3 bar |
| No load rotation speed | 762 rpm |
| Maximum rotational speed at power | 379.2 rpm |
| Torque at full power | 2.5 Nm // 22.13 lbf.inches |
| Minimum starting torque | 3.1 Nm // 27.44 lbf.inches |
| Choke torque | 5 Nm // 44,25 lbf.inches |
| Noise level | Less than 70 dB |
| Direction of rotation | Right / Left |
| Control system | Electropneumatic |
| Control Panel | HMI screen |
| Dimensions | 1118 x 440 x 1172 mm 44 x 17,32 x 46,14 inches |
| Hose length | 25 m // 82 ft |
| Weight | 65 kg // 143.3 lb |
| Structural Material | Stainless steel and HDPE |
Pneumatic equipment for cleaning air ducts up to 1000 mm.
Commercial and industrial buildings, offices, government agencies, hospitals, schools, and public and private companies have the need to clean their ducts regularly.
The National Air Duct Cleaners Association (NADCA ) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits.
Tecai is a member of NADCA, so when you buy our equipment, you should expect a high level of performance from it.
OPTIONAL ACCESSORIES

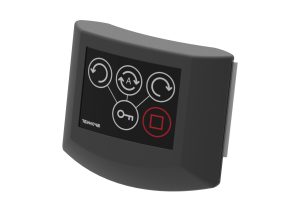

REMOTE CONTROL

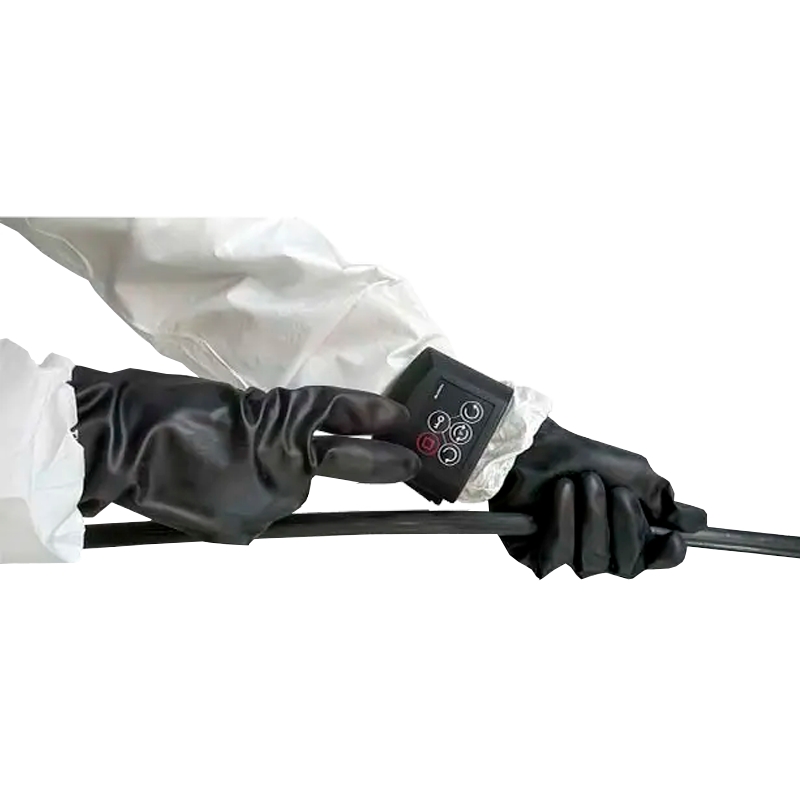

The wrist remote control allows a single a single operator to to clean the air duct.
CENTRATOR

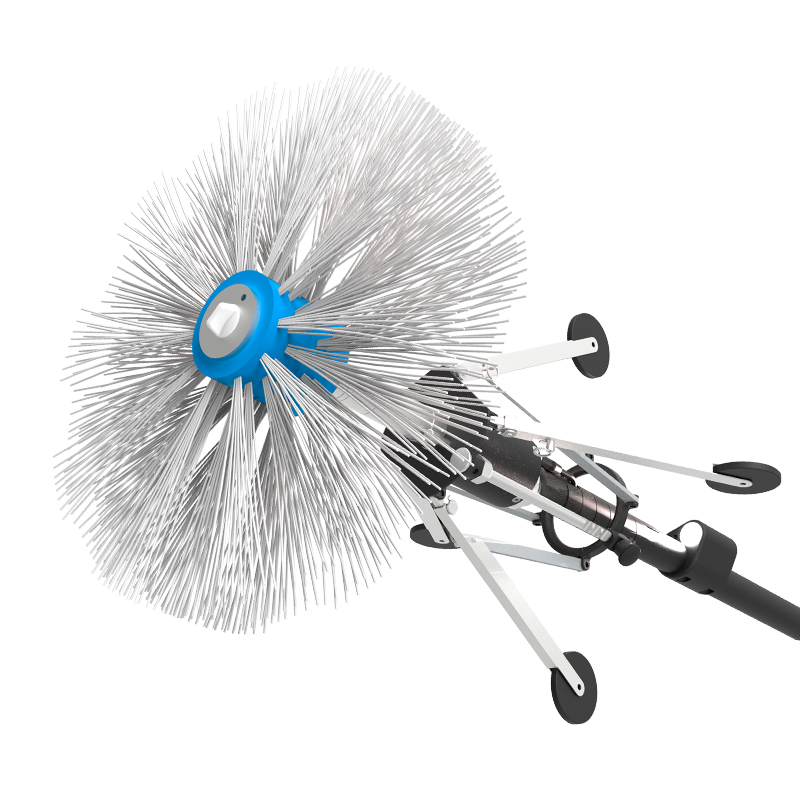

Allows the brush to be centered in the duct, thus exerting the same pressure over the entire diameter of the duct and avoiding lurching.
The wheels provide better sliding.
VISIOPRO
Real-time visualization of the inside of the duct. Captures high-definition video and photos during cleaning.
TECAI Brushes For duct cleaning
Discover the air brushes for your Tecai duct cleaning equipment.
