Duct cleaning equipment for mechanical ventilation systems VMC
for ducts up to
50 mm to 400 mm
Hose length
10m
COMPACT EQUIPMENT FOR CLEANING AND SUCTION OF VENTILATION AND AIR-CONDITIONING DUCTS

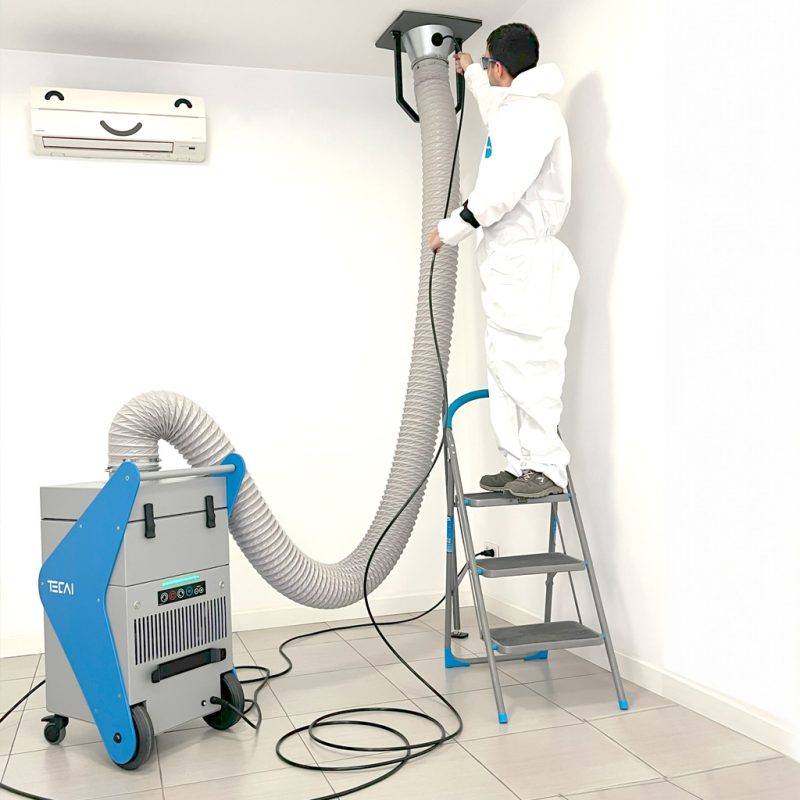

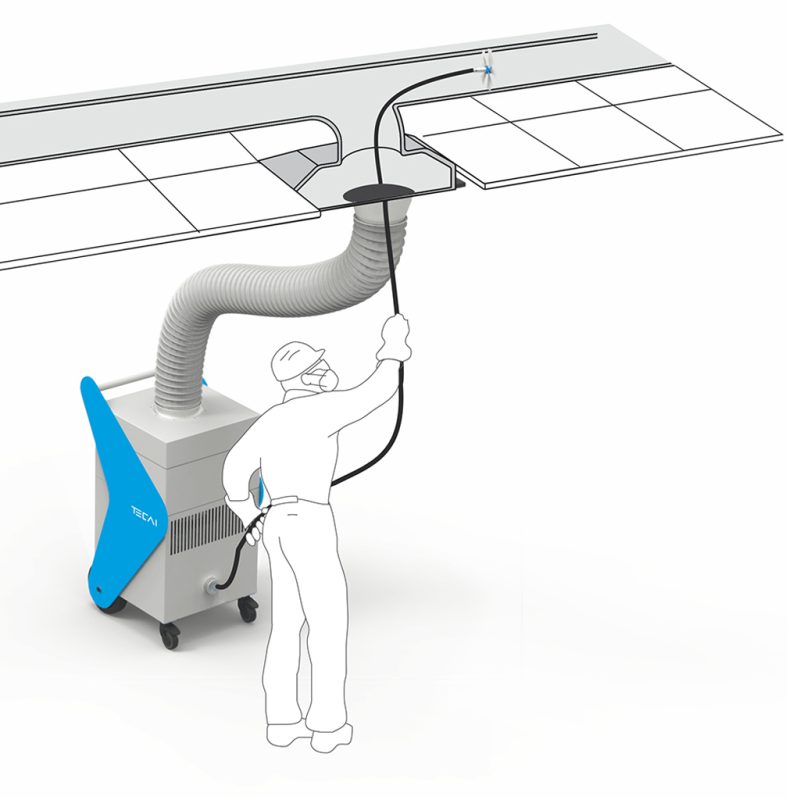

This integrated equipment offers a cleaning and suction system in a single machine, ideal for the cleaning of small-section VMC ventilation ducts . Cleaning is carried out efficiently thanks to its rotating flexible shaft mechanical brush, which allows to reach difficult areas and remove dirt and debris.
In addition, with the optional 50 to 400 mm duct shaft, this equipment is compatible with a wide range of ventilation and air conditioning systems, including residential, industrial and commercial applications.

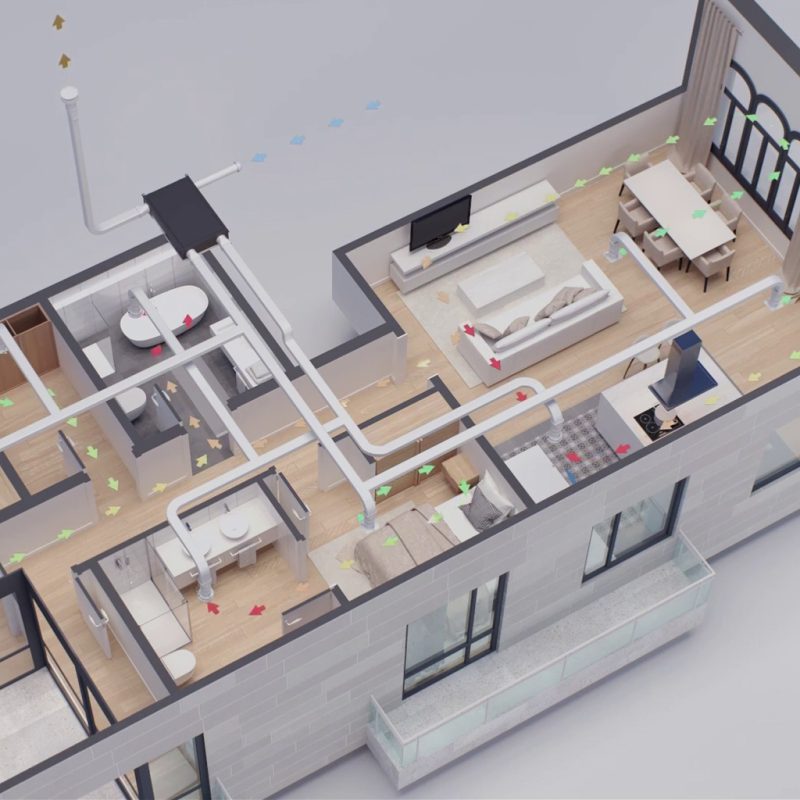

All in one: Venet integrates cleaning and suction in one compact unit, ideal for mechanical ventilation ducts (MVDC).
Adaptability and small size: Designed to be versatile, Venet is the perfect solution for residences, boats or trains. Its compact size makes it easy to handle and suitable for small spaces.
Total flexibility: Equipped with a flexible mechanical brush shaft that adapts to ducts from 50 to 200 mm. It also offers an additional shaft option for ducts up to 400 mm, covering a wide range of ventilation and air conditioning systems.
Powerful HEPA suction: This equipment complies with the strictest cleaning regulations and has a dual filtration system to ensure efficient suction of debris, improving air quality and the health of the environment.
Outstanding efficiency: With great cleaning power in a compact format, Venet is ideal for hard-to-reach spaces and for VMC systems with closed elbows, offering deep cleaning in complex areas.

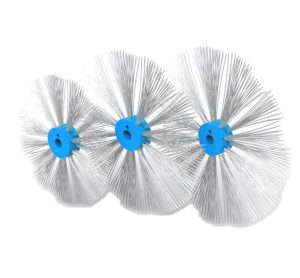

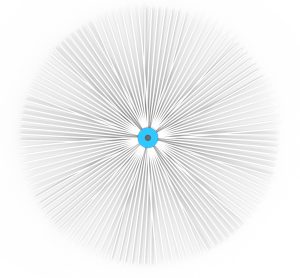

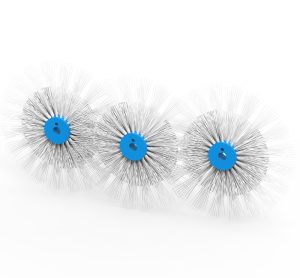

Specialized brushes: Equipped with brushes designed to adapt to all types of ducts, eliminating the need to change brushes during operation, optimizing working time and efficiency.
TECHNICAL DATA SHEET
| Power supply | 230V / 50 – 60Hz | 110V / 50 – 60Hz |
| Maximum power of the equipment | 0.7 kW // 0.94 HP |
| Maximum current consumption | 3 A |
| Suction power | 0.27 kW |
| Maximum suction flow rate | 1600 m3/h |
| Max. pressure | 600 Pa |
| Operating point | 1000m3/h at 450 Pa |
| Filtration level 1 | F7 |
| Filtration level 2 | H13 |
| Degree of separation | >99 % |
| Suction hose | Ø160 mm // 3 m / 9,84 ft |
| Brushing power | 0,25kW |
| Brushing speed | Adjustable 0 – 1000 rpm |
| Direction of rotation | Right / Left |
| Control system | Electric |
| Control panel | Membrane keyboard |

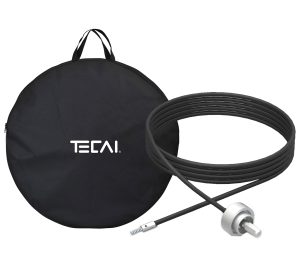

| Planing shaft | Ø10 mm // 10 m / 32,8 ft |
| Noise level | 72 dB |
| Main materials | Painted steel and HDPE |
| Dimensions | 530 x 481 x 926 mm 20.87 x 18.94 x 36.46 inches |
| Weight | 50 kg // 110.2 lb |
Duct cleaning equipment for mechanical ventilation systems VMC</h3
Commercial and industrial buildings, offices, government agencies, hospitals and schools, and public and private companies have the need to clean their ducts on a regular basis.
The National Air Duct Cleaners Association (NADCA ) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits.
Tecai is a member of NADCA, so when you buy our equipment, you should expect a high level of performance from it.




ACCESSORIES INCLUDED

SUCTION HOSE
Ø160 mm, 3.33 m long.
ADAPTER TO
CONDUIT FOR
SLEEVE
Ø160 mm.

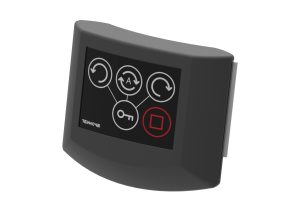

REMOTE CONTROL

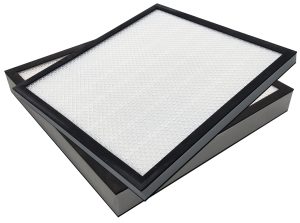

F7 AND H13 FILTER
400 X 400 X 21. 1 pc.
400 X 400 X 46. 1 pc.

OPTIONAL ACCESSORIES
