Duct cleaning equipment by means of
air under pressure
AIR DUCT CLEANING BY MEANS OF PRESSURIZED AIR
The air injection system removes accumulated dirt from the ducts while visually monitoring, recording the process and ensuring that the duct cleaning has been performed correctly. Regardless of duct size, shape or material, perimeter cleaning technology fits any type of situation.
CONTROL PANEL DATA SHEET
| Power | 230V / 50 – 60Hz 110V / 50 – 60Hz |
| Power supply | Electric |
| Compressed air supply | 800 liters/min (intelligent nozzle) 28.25 cfm 800 liters/min (rotary nozzle) 28.25 cfm |
| Control | Manual electro-pneumatic and remote control |
| Noise level | < 70 dB |
| Hose length | X2 15 meters / 49 ft |
| Video inspection system | HD camera |
| Dimensions | 550x410x1190 mm 22×16,14×47 inches |
| Weight | 45 kg / 99 lb |
| Structural Material | Stainless steel |
Electrical equipment for air duct cleaning by means of pressurized air.
Commercial and industrial buildings, offices, government agencies, hospitals and schools, and public and private businesses have a need to clean their ductwork on a regular basis. The National Air Duct Cleaners Association (NADCA ) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits. Tecai is a member of NADCA, so when you purchase our equipment, you should expect a high level of performance from it.
DESIGNED FOR EASY CLEANING OF AIR DUCTS
VERSATILITY

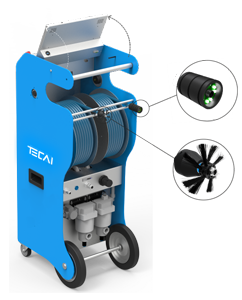

The equipment has two types of nozzles:
– Intelligent nozzle, incorporating a high-definition camera with illumination.
– Rotating nozzle, designed to clean ducts with high levels of dirt.
DISPLAY AND RECORD
With Visioair, you can observe, clean and record at the same time.

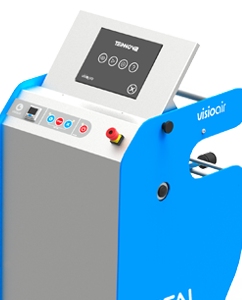

Through the touch screen, you can view the cleaning in real time in high definition. In addition, you have the option to take photos and record videos of relevant areas to generate detailed reports to customers.
THE EFFICIENCY OF DUCT CLEANING WITH PERIMETER TECHNOLOGY
This technology offers high work speed and requires only one operator. It will give you a competitive advantage in securing large-scale contracts, such as those for hospitals or shopping malls.
ACCESSORIES NOT INCLUDED

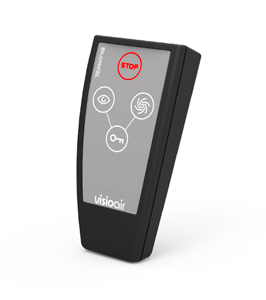

REMOTE CONTROL
ERGONOMIC RF

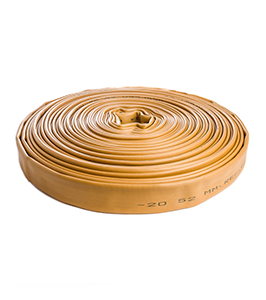

OROFLEX FLAT AIR HOSE
30 m.
