PORTABLE AND COMPACT VIDEO DUCT INSPECTION
Whether you are in the business of kitchen exhaust duct cleaning or air duct cleaning, VISIOMAX is the ideal tool to show your customers the importance of cleaning their duct systems.
VISIOMAX is a portable and compact system that can be used as a video inspection tool prior to carrying out any cleaning work on HVAC systems.
Many times, it is what is unseen or unprovable that delays a necessary job, especially when it comes to air duct cleaning.

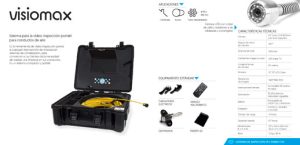

TECHNICAL DATA SHEET
Battery life6-7 hours
| Camera | 1/3″ Sony CCD 22mm with Sapphire lens |
| Camera viewing angle | 130 degrees |
| Viewing range | 1000mm |
| Color picture quality | 420 TV lines |
| Camera axis length | 30 meters |
| Monitor | 10″ TFT-LCD color |
| Image resolution | 1920*1080 AHD |
| Watertightness (Camera) | Submersible 20m in water |
| Lighting | 15 dimmable white LEDs |
| Battery | Rechargeable type LI-ION 7.2V / 6400mAh |
| Charger | 110 – 230V / 50-60Hz to 12V / 1.5A |
| Charging time | 10 hours |
| Dimensions | 517x434x200 |
| Weight | 12 kg |

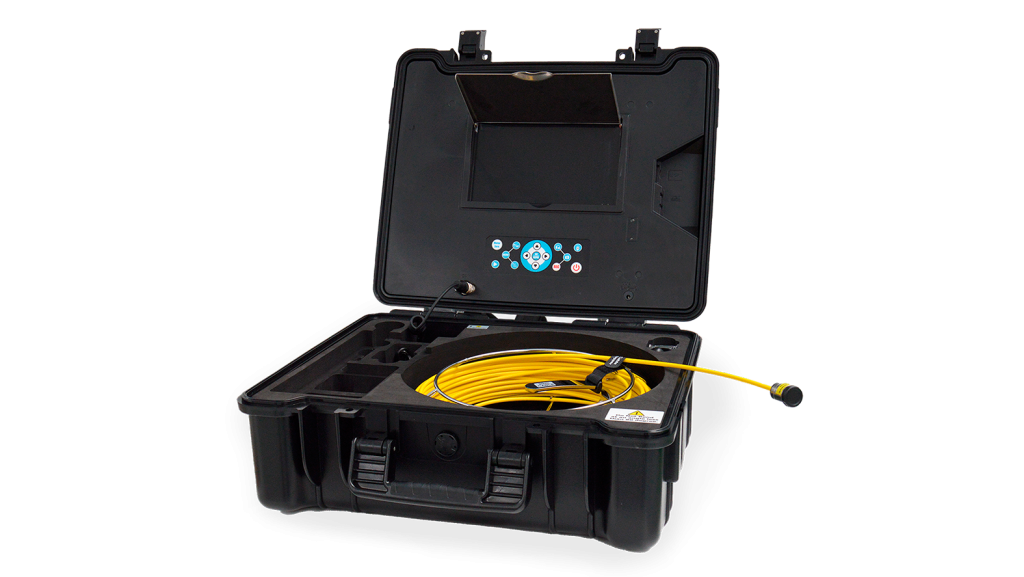

Air duct video inspection system.
Commercial and industrial buildings, offices, government agencies, hospitals and schools, and public and private companies have the need to clean their ducts on a regular basis.
The National Air Duct Cleaners Association (NADCA ) sets the industry standard for HVAC cleaning, and when done correctly, HVAC cleaning can have many benefits.
Tecai is a member of NADCA, so when you buy our equipment, you should expect a high level of performance from it.
STANDARD EQUIPMENT

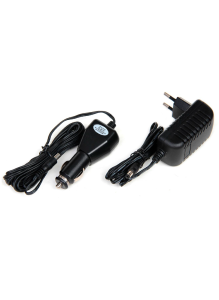

ELECTRIC CHARGERS

CONTROL
WIRELESS

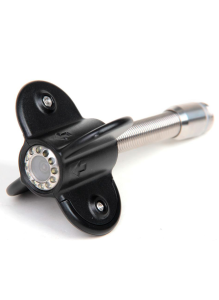

CENTRATOR
